Features & Applications

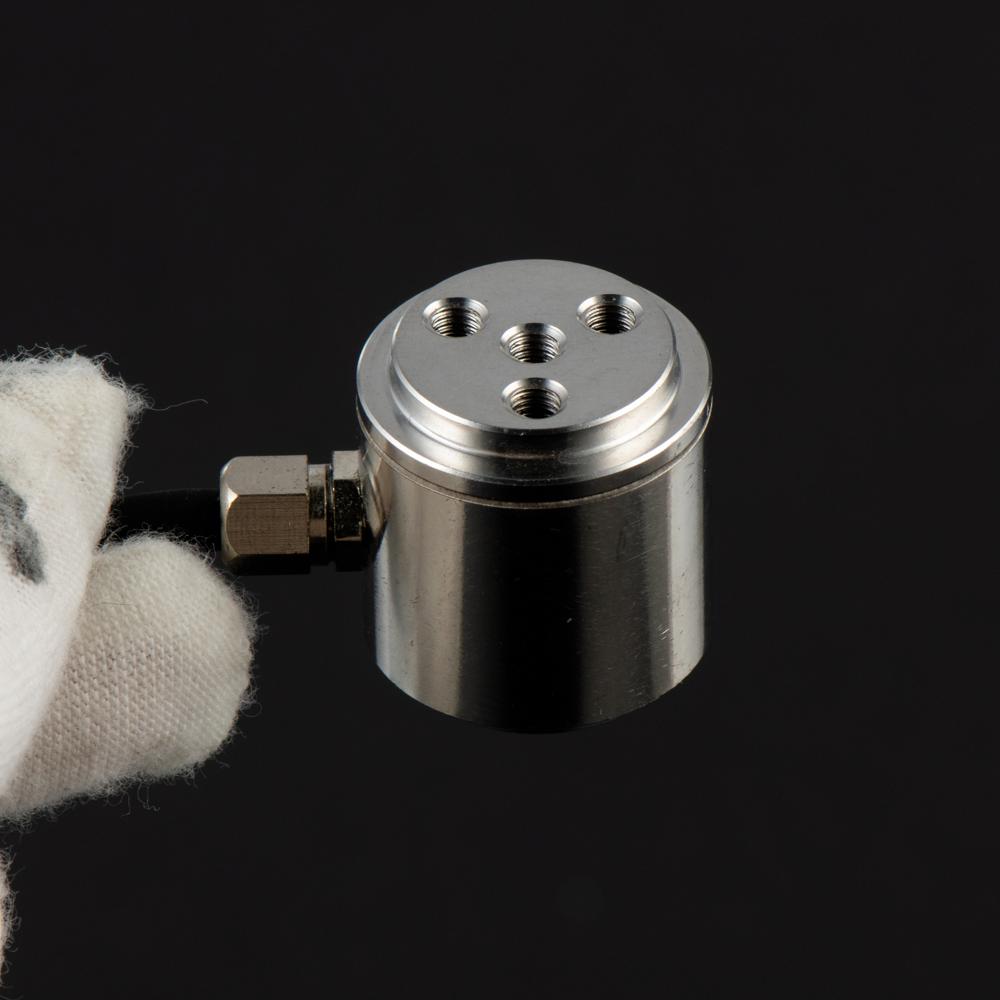

Miniature load cell，low profile，small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer and industrial measuring system
|
參數 |
Specifications |
技術指標/Technique |
|
額定容量 |
Capacity |
2,5,10,20,50,100,200kg |
|
輸出靈敏度 |
Rated output |
1.0-2.0±10%mV/V |
|
零點輸出 |
Zero balance |
±0.05% F.S. |
|
非線性 |
Non-linearity |
0.05% F.S. |
|
滯后 |
Hysteresis |
0.05% F.S. |
|
重復性 |
Repeatability |
0.05% F.S. |
|
蠕變（30min） |
Creep(30min) |
0.05% F.S. |
|
溫度靈敏度漂移 |
Temp.effect on output |
0.05%F.S./10℃ |
|
零點溫度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
|
輸入電阻 |
Input impedance |
350±10Ω |
|
輸出電阻 |
Output impedance |
350±10Ω |
|
絕緣電阻 |
Insulation |
≥5000MΩ/100VDC |
|
激勵電壓 |
Recommended excitation |
5~12V |
|
最大激勵電壓 |
Maximum excitation |
15V |
|
溫度補償范圍 |
Compensated temp range |
-10~60℃ |
|
工作溫度范圍 |
Operation temp range |
-20~80℃ |
|
安全超載 |
Safe overload |
150%F.S. |
|
極限超載 |
Ultimate overload |
200%F.S. |
|
電纜線尺寸 |
Cable size |
Φ2×3000mm |
|
單件重量 |
Weight approx. |
0.2kg |
|
材料 |
Material |
Stainless Steel（不銹鋼） |
|
防護等級 |
IP Class |
IP66 |
